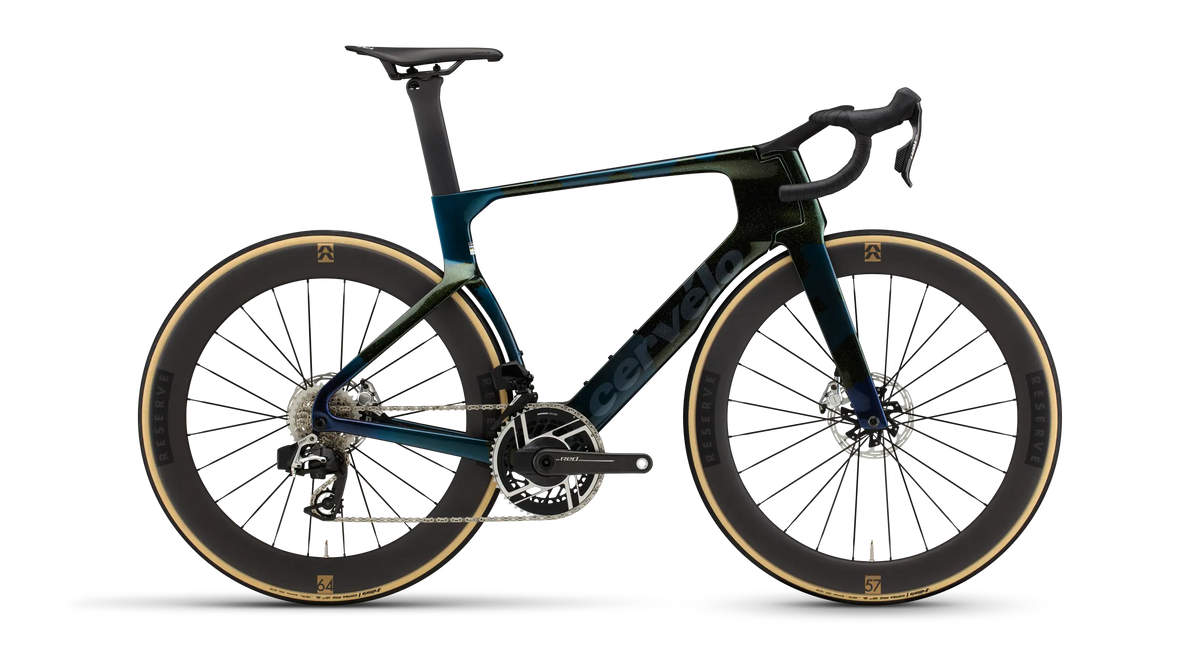

Cervelo S5 Red AXS Maps LTD 2027

Photos are the manufacturer's. Ask us for a photo of the actual bike in your size.

Cervélo · Bikes

S5 Red AXS Maps LTD 2027

$18,900CAD
Frame
Cervelo All-Carbon Frame
Groupset
SRAM Red AXS
Wheels
Reserve 57TA
Colour Maps LTD
Size 54

4.9 on Google · 221 reviews

Questions about this bike?

Call Email
Pick up at 8 Lakeshore Rd WUsually ready in 24 hours. Built, checked and fitted before you leave.
Ships across CanadaTracked shipping anywhere in Canada, $100 flat.
Fit and sizing

A fitting session is included with every bike. Not sure of your size? Call 905.825.0055 or come by 8 Lakeshore Rd W and we’ll size you up.

Shipping

We ship anywhere in Canada with tracking for a flat $100, or pick up free at 8 Lakeshore Rd W in Oakville. See the shipping page for details.

Returns and exchanges

Contact the shop within 7 days of purchase for an exchange. Special and custom orders are final sale. Read the full returns policy.

PRODUCT DETAILS
The Maps LTD is a limited edition of the S5 RED AXS — only 650 frames produced worldwide. The S5 is a sport-wide benchmark for speed and aerodynamic efficiency—with the race results to back it up. S5’s iconic V-stem and bayonet fork are a fixture at the front of the professional peloton. The new S5 builds on that legacy of speed by getting even faster, evolving the front end, and going on a bit of a diet. The new bike is over 6 Watts faster than its predecessor, 124 grams lighter, and retains the handling, poise, and stability that riders everywhere love. Cervélo and Reserve co-developed the new Reserve 57|64 Turbulent Aero wheels specifically for use in the S5 frame.
01

AERO AERO AERO

The new S5 is 6.3 Watts faster than its predecessor. These gains are realized primarily at the front end of the bike, but the integration of the asymmetric profiles of the seat tube and rear wheel are a significant source as well. Cervélo has long been the aerodynamic leader in the peloton, and we’re confident that the new S5 is at least 5 Watts faster than the bikes of our competitors.
02

ONE-PIECE HANDLEBAR/STEM

HB19 uses our “Plus-Four” concept, meaning the dimension at the hoods is 4cm narrower than in the drops (e.g. 38cm/42cm). This approach helps riders maintain a more aero body position while their hands are on the hoods, and provides stability in the drops for descending and sprinting. All bar sizes are UCI-legal, even in light of the most recent regulations change.
03

NOT JUST FASTER. LIGHTER, TOO.

Despite an increase in surface area, the new S5 is 124 grams lighter than its predecessor. While the increase in fork and head tube depth added weight, we optimized the layup and hardware to make the system lighter.

Specifications

S5 Red AXS Maps LTD 2027

Frameset

Frame
Cervelo All-Carbon Frame
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Headset
FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°

Drivetrain

Shifters
SRAM Red AXS E1
Front derailleur
SRAM Red AXS E1
Rear derailleur
SRAM Red AXS E1
Crankset
SRAM Red AXS E1, 50/37T, DUB, with power meter: 160mm (48), 165mm (51), 170mm (54-56), 172.5mm (58-61)
Chain
SRAM Red E1
Cassette
SRAM Red E1, 10-33T, 12-Speed
Bottom bracket
SRAM DUB Ceramic, BBright
Groupset
SRAM Red AXS

Wheels

Rims
Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible, Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Hubs
DT Swiss 180
Spokes
Alloy
Tires
Vittoria Corsa Pro TLR G2.0 700x29c
Tire size
29MM
Wheel size
700c

Cockpit and contact points

Handlebars
Cervélo HB19 Carbon one-piece: 36cm (48), 38cm (51), 40cm (54-61)
Stem
Cervélo HB19 Carbon one-piece: 80mm (48), 90mm (51), 100mm (54-56), 110mm (58), 120mm (61)
Grips / tape
Cervelo
Saddle
Fizik Arione R1 Light
Seatpost
Cervélo SP34 Carbon, 0mm offset (48-58), 15mm offset (61)

Brakes

Brakes
SRAM Paceline X Centerlock
Brake levers
SRAM Red AXS E1
