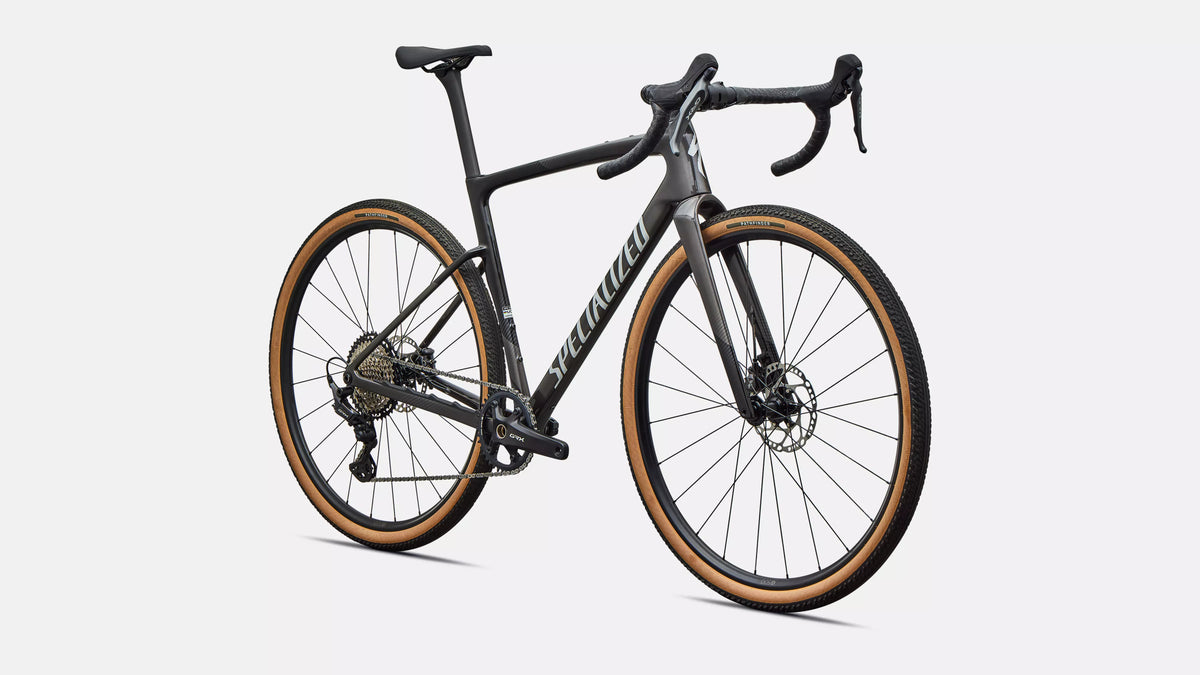

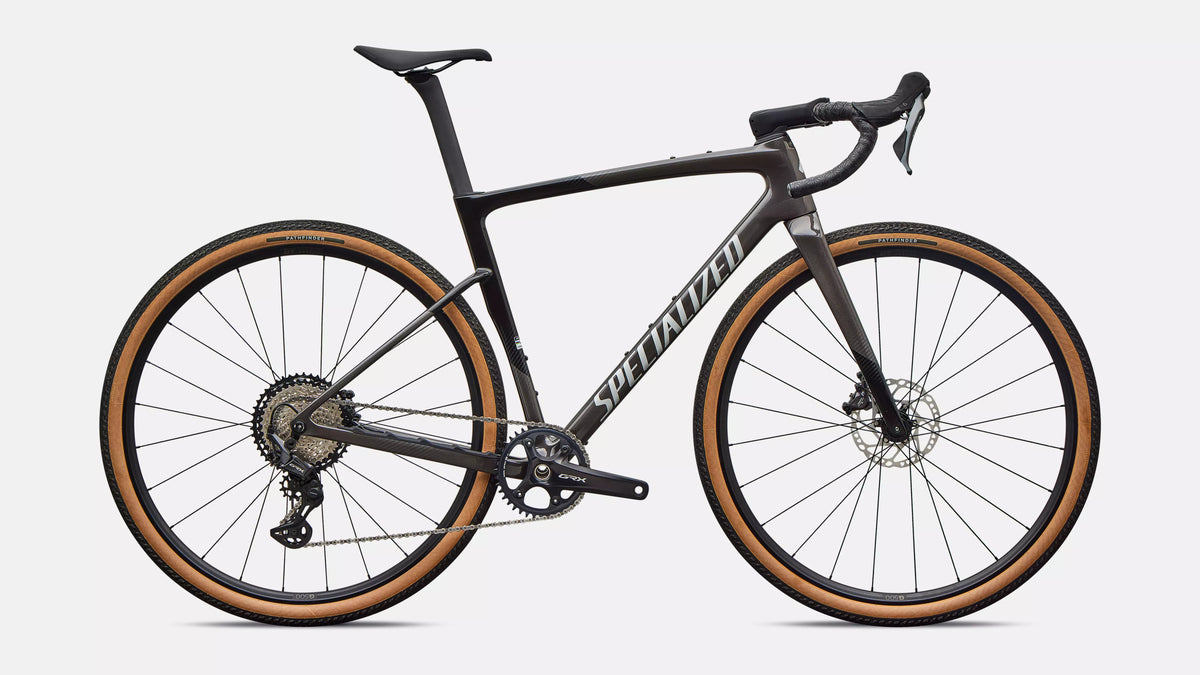

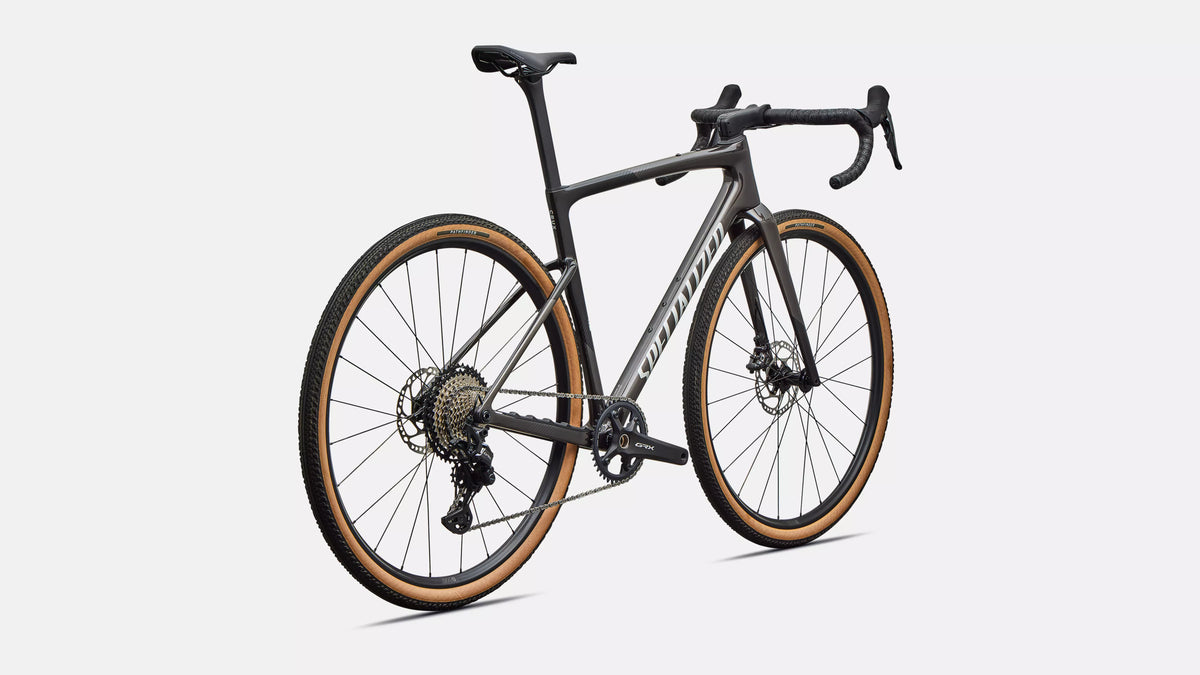

Specialized Crux 5 Sport
Specialized Crux 5 Sport
Specialized Crux 5 Sport
1 / 3

Photos are the manufacturer's. Ask us for a photo of the actual bike in your size.

Specialized · Bikes

Crux 5 Sport

$5,299.99CAD
Frame
Crux 5 FACT 10r Carbon
Groupset
SRAM FORCE XPLR
Wheels
DT Swiss G500 rim
Color Silver Pearl Smoke
Size 49

This size isn't in the shop right now

Call us and we'll check it with Specialized and give you a real date before you pay anything. Not sure of your size? We'll help with that too.

Call 905.825.0055 Email us
4.9 on Google · 221 reviews

Email me when it's back

We'll email you as soon as it's back. No spam.

Questions about this bike?

Call Email
Pick up at 8 Lakeshore Rd WBuilt, checked and fitted before you leave.
Ships across CanadaTracked shipping anywhere in Canada, $100 flat.
Fit and sizing

A fitting session is included with every bike. Not sure of your size? Call 905.825.0055 or come by 8 Lakeshore Rd W and we’ll size you up.

Shipping

We ship anywhere in Canada with tracking for a flat $100, or pick up free at 8 Lakeshore Rd W in Oakville. See the shipping page for details.

Returns and exchanges

Contact the shop within 7 days of purchase for an exchange. Special and custom orders are final sale. Read the full returns policy.

PRODUCT DETAILS
The S-Works Crux 5 is the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.
01

9:58 Faster Over Unbound

So what happens when we run the Equation of Speed with:

15.2 watts less aerodynamic drag
A 789 gram frame (56cm S-Works)
6.9 kg system weight
Hyper-accurate surface telemetry
Elite rider power profiles
9:58 saved.

Racing the 2025 Unbound on a 2026 Crux 5 would save Sofía Gómez Villafañe over 9:58—purely through equipment efficiency.

This level of simulation may be unique in cycling, but not in other elite sport. Both Formula 1 and America’s Cup sailing utilize simulation extensively to benchmark and refine performance. Hyper-accurate simulation has been one of the key reasons both of these sports have seen such massive leaps in performance.
02

A System of Speed

Crux 5 is the most aerodynamic gravel race bike we’ve ever tested.
Drawing directly from Tarmac SL8 learnings and decades of aero research, every tube on Crux 5 was sculpted for speed at elite gravel race speeds.

Aero Gains Breakdown:

Frame, fork & seatpost: 50%
Roval Terra Aero wheels: 30%
Roval Terra cockpit: 20%
*15.2 watts as spec’d with our Moving Leg Mannequin at 45 kph. Results may vary up or down depending on individual riders.

The Science Club at our Morgan Hill Innovation Center built mules—preliminary test prototypes that bonded parts of the Crux 4 with parts of the Tarmac SL8. From a Crux 4 with a Tarmac SL8 seat tube and seat post, to a full Tarmac SL8 rear end bonded to a Crux front triangle with a custom aero fork, the Science Club began to hybridize road-level aero gains with gravel-light weight savings.

All those aero gains were validated with the Moving Leg Mannequin, because being fast without a rider is meaningless.
03

Rider Inclusive Aerodynamics

No gravel bike is raced without a rider—and no aero data is meaningful without one either. That’s why our Win Tunnel testing incorporates our Moving Leg Mannequin, now in its sixth generation. Unlike static mannequins or bike-only testing, this system captures how a rider’s full body in motion alters airflow across the bike at race-relevant speeds.

The new sixth generation Moving Leg Mannequin delivers:

Increased repeatability
Reduced test-to-test variance
More accurate rider-inclusive CdA values
A rider’s legs in motion dramatically change the airflow. Any aero calculations that omit this key factor are incomplete.

Specifications

Crux 5 Sport

Frameset

Frame
Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Drivetrain

Shifters
Shiimano GRX ST-RX820
Front derailleur
N/A
Rear derailleur
Shimano GRX RD-RX822-GS, 12-speed
Crankset
Shimano GRX FC-RX820, 40t
Chain
Shimano XT CN-M8100, 12-speed
Cassette
Shimano XT CS-M8100, 12-speed, 10-45t
Bottom bracket
Shimano Threaded BSA BB
Groupset
SRAM FORCE XPLR

Wheels

Rims
DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples, DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Hubs
DT Swiss
Spokes
DT Swiss Champion 14G stainless steel spokes
Tires
Pathfinder 700x45, Tubeless Ready
Tire size
45mm
Wheel size
700c

Cockpit and contact points

Handlebars
Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Stem
Roval Rapide, alloy, 4 bolt, -6 degrees
Grips / tape
Supacaz Super Sticky Kush
Saddle
Body Geometry Power Sport, steel rails
Seatpost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Brakes

Brakes
Shimano GRX BR-RX820
Brake levers
Shimano GRX BR-RX820
